Bidirectional Radio Control 2 Way
|
Wireless
Links
I/O Point-to-Point Monitoring and Control |
Migro®
Bidirectional -
Two Way
.
■
No parameterization nor programming required
■ No
Internet, Transparent
I/O System
■
No
Third party cell, No monthly
fees
■ You
have full control over your own
carrier
■ Power
system 12/24VDC solar
ready
■
Real time status feedback from the
remote site
■
Fast installation and easy
setup
■
2
Miles (3.km)
line-of-sight with Optional Yagi
7 dBi
antenna
■
Optional range 17 miles (30 km)
line-of-sight
Special application
request form |
 |
|
Applications:
Field operations, irrigation, PLC remote i/o, lighting, process, pumps,
generators, solar systems, water
management, plantations,
remote monitoring, mobile,
security, robots, conveyor control, traffic control, test
and research equipment,
industrial process, hazardous
area remotes. Wire replacement
|
|
|
938204 Bidirectional Wireless 4 Channel
I/O Digital
938204
Please
request
current price |
■ Set
with Master & Slave
Each
one with:
■
4 Digital inputs, N/O Dry Contact,
■
4
Relay outputs N/O 5A, 240V
Pilot duty class 2
■
Operation in 12 or 24 VDC
Specifications
Data Sheet
|
. |
|

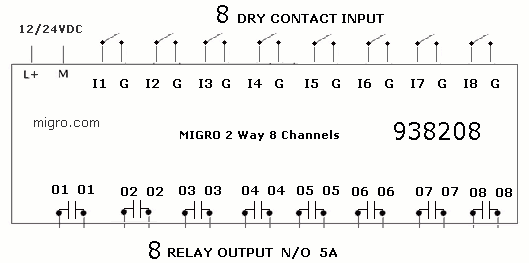

938208
Two Way 8 Channel Digital
938208
Quote
request form
|
■ Set
with Master & Slave
Each
one with:
■
8 Digital inputs, N/O Dry Contact,
■
8
Relay outputs N/O 5A, 240V
Pilot duty class 2
■
Operation in 12 or 24 VDC
Specifications
Data Sheet
|
|
|
|
Antenna Selection |
|
|
 |
|
938432
3
Element Beam/Yagi Antenna
433 MHz, Gain: 7 dBi,
Rating: 150 Watts,
With 10' Coax Cable and connector
Base Length: 18", Weight:
1.0lb |
 |
|
|
 |
|
938433
12 Element Beam/Yagi Antenna
433 MHz, Gain: 14 dBi,
Rating: 150 Watts,
With 10' Coax Cable and connector
Base Length: 43", Weight: 2.0lb |
 |
|
|
 |
938438
Omni 2.5 dBi Antenna
433 MHz, Gain: 2.5dBi,
Rating: 150 Watts,
With 10' Coax Cable and connector
Length: 37", Weight: 3.0lb |
 |
|
|
|
|
|
Specifications
|
Digital Input / Output |
| Supply power |
12 VDC ±10% @ 600 mA |
| Inputs
|
N/O Normally
open digital dry contact |
| Outputs
|
Relay contact
5Amp SPST 240V Pilot duty |
| Output Mode |
Normal or
Retain status |
| Ambient temp |
14° to 140° F (-10° to 60°
C) |
| Ambient RH |
5% to 95% RH non condensing |
| Connection |
Terminal screws
DIN |
| Response |
500 msec full
duplex |
| Weight |
5.2 lb (2.40kg)
each unit, 2 and 4 channel |
| Dimensions w NEMA4 |
12"W x 8"H x
5"D (300 x 200 x 120 mm) |
|
|
Radio System |
| Frequency |
433 MHz
license free industrial |
| Receiver |
Digital 16
bit, sensitivity -110 dBm |
| Configuration |
DIP switch |
| Data rate |
19.2 KBPS
Encoded |
| Antenna external |
50 Ohm (optional) |
|
Compliance |
FCC CFR part 15.247
ISM |
|
Digital Transmission |
Gaussian_frequency-shift_keying |
| Transmitter
channels |
16 addresses per system
|
| Transmitter power |
per
FCC Part 15.249, 50mV/m @ 3m |
| Enclosure
Selection |
NEMA4 selection:
Fiber or Metal. |
|
|
DISCLAIMER:
Radio control
equipment in not to be used in life safety.
Radio control systems are subject to applications,
environmental and atmospheric conditions,
We are not liable of failures on miss applications, radio black outs
or interruption of the transmissions. Radio Installations
shall be performed by a certified professional. |
