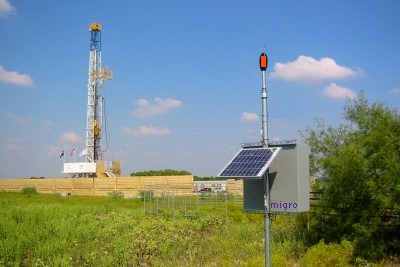

Wireless supervised
controller applications: Pumps, level
control, monitoring, lighting, security.
|
 |
 |

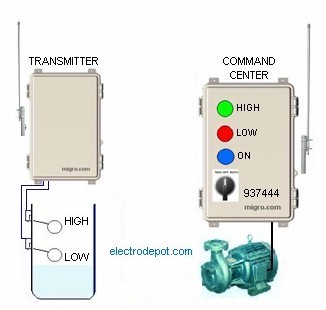

937444 •
5 Miles ( 8 km ) line of sight
• Optional
extended 20 Miles (32 km) line of sight
•
High and Low Level remote indication
• Low
battery status indication or alarm
| Operating
Voltage: |
12 VDC - Solar ready |
|
Temperature:
|
-4° to +140° F
(-20° to +60° C) |
| Transmission: |
16 BIT FM Encoded Digital |
|
Carrier
Frequency |
27 MHz Free license industrial
band |
| Codes:
|
DIP switch programming |
|
Current Drain |
Receiver 25 mA,
standby, 65 mA operation
Transmitter 2 A. 1 second |
|
Data Input TX |
2 Dry contacts |
|
Relay
Output RX |
10 Amp max 250VAC
N/O
pilot duty class
II |
| Antenna Imp |
50 Ohms Quarter Wave
ANTENNAS |
|
Dimensions: |
11.81 x 7.87 x 6.29 in. /
299.97 x 199.90 x 159.77 mm
|
| Weight |
8
lb. (4 Kg) each |
| Enclosure |
NEMA 4, IP67 ABS plastic
waterproof |
| Compliance |
per FCC Part
15.249, 50mV/m @ 3m |
| |
Circuit board UL796 and UL94 |
|

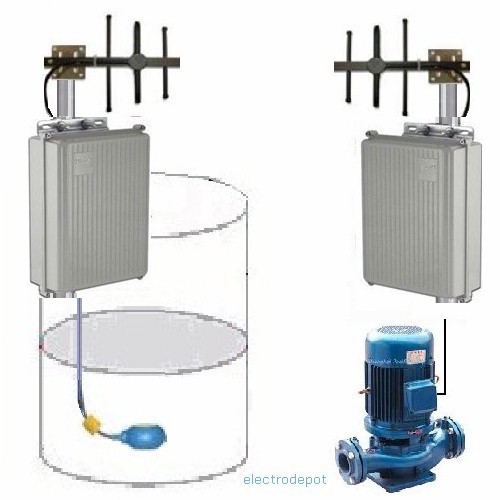

938511
•
2 Miles ( 3 km )
line of sight
Optional extended
range up to 10 Miles (16Km)
| Operating
Voltage: |
12 VDC |
|
Operating
Temperature: |
-4° to +140° F
(-20° to +60° C) |
| Number of
Codes: |
4096
codes, DIP switch programming |
|
Carrier
Frequency |
433 MHz,
16 BIT Digital
ISM band |
| Current
Transmitter |
Standby
70mA, transmitting 400mA |
|
Current
Receiver |
Standby
70mA, operation,
400 mA |
|
Data Input TX |
Dry contact N/O: normally open |
|
Relay
Output |
10 Amp, 250VAC
SPDT, NO/NC
pilot duty class II |
| Antenna
Impedance |
50 Ohms, Antenna optional
Yagi or Omni |
| RF Power |
per FCC Part 15.249, 50mV/m @
3m |
| Dimension (*) |
14.00
x 10.00 x 6. in.
(360 x 250 x 160 mm) |
|
Enclosure rating |
NEMA 4, IP65 waterproof |
| Compliance |
FCC CFR part
15.247 ISM |
| (*) |
Final product dimensions may
vary |
