Migro® 7000 Heavy duty  Long Range Field control operations, irrigation, lighting, generators, solar, pumps, test sites, monitoring, marinas, farm perimeter. Very flexible; the users can tailor long-distance links to their needs for remote control and monitoring, industrial sites, switching systems, traffic, security.

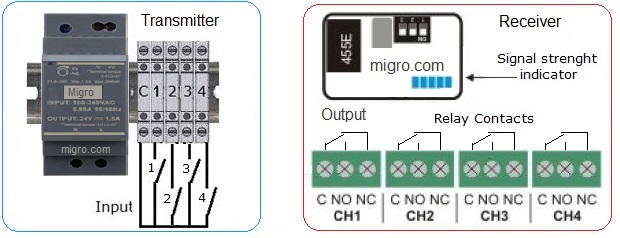

	937064   4 Channel Transmitter  and  Receiver

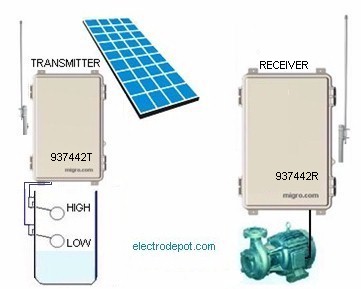

				Application Example
	Specifications:   Operation 154 MHz digital encoded, industrial band   Compliance  FCC Part 15.249,  50mV/m @ 3m.    Enclosure: Weatherproof specification: IP67, NEMA4X   Dimensions 9.5"W x 6.5"H x 4"D (240 x 160 x 100 mm)   12 VDC, Transmitter 2A (1 Sec.), Receiver 100mA   Transmitter Input: Dry Contact   Receiver Output  N/O and N/C relay 1 Amp @ 32 VDC.    64536 digital codes @ 16bit, Solar ready 12VDC   Antenna 50 ohm,   ANTENNAS            Application dossier      To Order			High Performance extra long range:    Migro® 7700 Series Long Range   •Optional  30 Miles (50 km) line of sight, PERFORMANCE  • 5 Miles ( 8km ) line of sight w Hi-Gain antenna • 6000 feet (200m) partially obstructed • Encoded system with 65,536 digital 16 bit codes • Simple DIP switch programming setup • System is Solar Ready 12VDC operation • Unlimited transmitter can be added • Unlimited receivers can be added • No programming or internet required • 154 MHz license free section industrial band COMPLIANCE: per FCC Part 15.249,  50mV/m @ 3m Circuit board Compliance with UL796 and UL 94 MIL-STD-461E for Electro-Magnetic Interference (EMI) MIL-STD-901D Grade A for High Impact Shock MIL-STD-167B for Vibration
